Description

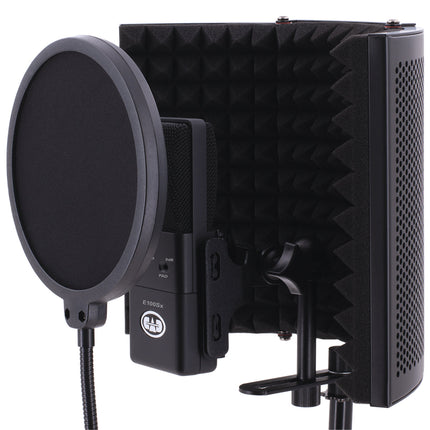

The CAD Audio E100SP studio pack contains everything you need to start recording your next podcast, voiceover, vocal track or acoustic instrument track.
The E100SP contains one each of the following items:
• E100Sx Large Diaphragm Supercardioid condenser microphone
• CX2 USB Audio Interface
• AS10 Acousti-Shield
• VP1 pop filter
• CLC25 25’ microphone cable

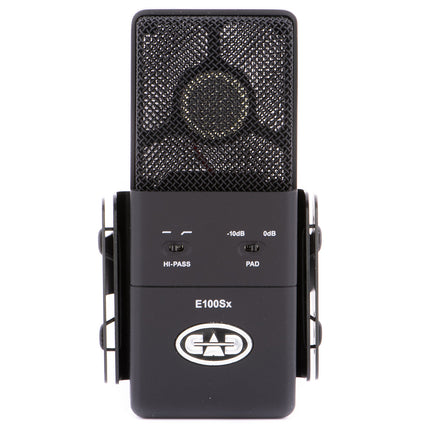

The Equitek E100Sx includes the following features:
• 1" nickel plated capsule
• High Sensitivity, Low Noise, Low Distortion
• Highly effective low-profile shock mount
• Smooth, articulate true-to-life reproduction
• Supercardioid pattern provides enhanced isolation from room noise and nearby instruments
• Ideal for voice-over, acoustic instruments, percussion, podcasting, or vocal performance
• 2 Year Warranty

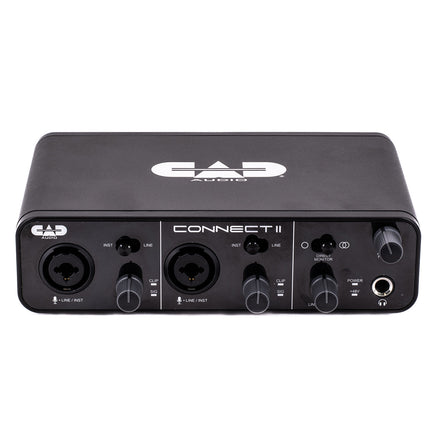

The CX2 includes the following features:
• Value-packed 2-channel USB audio interface for home or mobile recording
• Record at professional-level 24-bit/96kHz resolution
• Includes +48V phantom power for use with studio condenser microphones
• USB bus powered
• Two preamps with combo inputs for recording either microphone or instrument-level audio
• Compatible with nearly any recording software on Windows® or Macintosh® operating systems

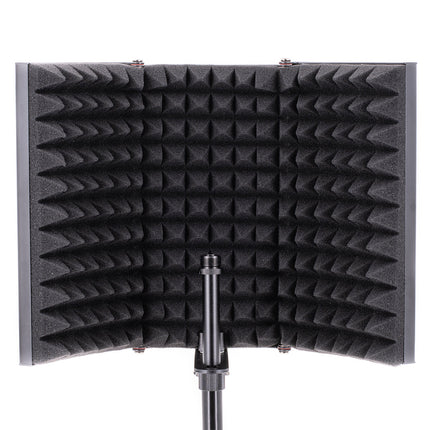

The AS10 includes the following features:
• The Acousti-Shield AS10 reduces reflections, echo and attenuates unwanted environmental acoustic interference
• An innovative advanced mounting design allows for maximum positioning stability even when using an economy mic stand
• An effective tool for recording audio for video, voiceovers, or any audio recording project

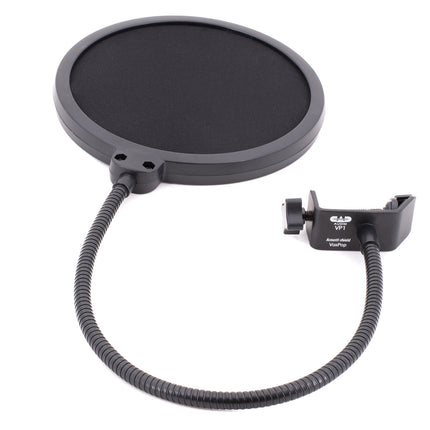

The VP1 includes the following features:
• Double-layer Acoustic Nylon is highly effective at extinguishing pops and plosives
• High quality metal construction 14” metal gooseneck and stand clamp allows for precise placement
• Sonically Transparent
The CLC25 includes the following features:
• Metal XLR connectors with sure-grip™ strain relief
• Lo-Z balanced for low noise and high definition
• 25’ XLR-M to XLR-F connects microphone to preamp, mixer, recorder, or audio interface
E100Sx Specifications
Operating Principle: Condenser
Polar Pattern: Supercardioid
Frequency Response: 20Hz – 18kHz
Sensitivity: -32dBV (25mV @ 1Pa)
Impedance: 150ohm
Max SPL: 136dB (with pad engaged)
Self Noise: 9.5dBA
High-Pass: 100Hz, 6dB/oct
Power Requirements: P48, 1.6mA
CX2 Specifications
Frequency Response: 20Hz – 20kHz
Resolution/Sample Rate: 24Bit/96kHz
Phantom Power: +48 V
Dynamic Range: 118dBA
EIN: -110dBA
Max Input Level:
Mic +8dBu
Instrument +11dBu
Line +19dBu
Input Impedance:
Mic 3k ohms
Instrument 1M ohms
Line 20k ohms
Gain Range: 50dB
