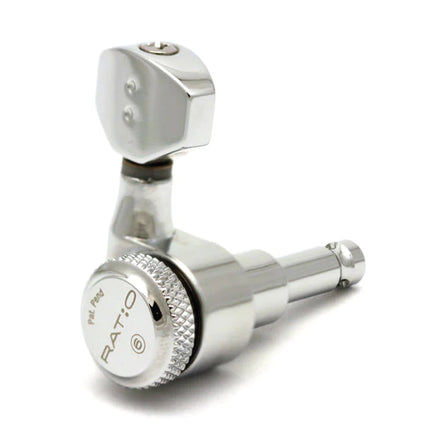

GraphTech RATIO Electric Guitar 3+4 Mini Contemporary Machine Heads ~ Chrome

Description

The PRL-8621 is a right-handed set of Locking RATIO® Calibrated Machine Heads for electric guitars that use a 3 + 4 tuner configuration.

Fits many Jackson, Schecter, and Ibanez (selected) style guitars and a lot of acoustic guitars if you want to upgrade to a locking set of machine heads.

It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.910” (23mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set: 0.581lbs (266g)
String diameter up to 72 gauge
Includes 7 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates

GraphTech RATIO Electric Guitar 3+4 Mini Contemporary Machine Heads ~ Chrome

Product form

The PRL-8621 is a right-handed set of Locking RATIO® Calibrated Machine Heads for electric guitars that use a 3 +... Read more

SKU: PRL-8621-C7

Excl. Tax: £182.50 GBP
Incl. Tax: £219.00 GBP

    Description

    The PRL-8621 is a right-handed set of Locking RATIO® Calibrated Machine Heads for electric guitars that use a 3 + 4 tuner configuration.

    Fits many Jackson, Schecter, and Ibanez (selected) style guitars and a lot of acoustic guitars if you want to upgrade to a locking set of machine heads.

    It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

    4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

    Gear ratio: unique for each string position - one turn-one tone
    Peg holes diameter required: 13/32" (10mm)
    String post diameter: 0.236" (6mm)
    String post length to string hole: 0.910” (23mm)
    Weight per single machine head: 0.083lbs (38g)
    Weight per set: 0.581lbs (266g)
    String diameter up to 72 gauge
    Includes 7 machine heads, mounting screws and bushings
    Includes complimentary 4 sets of aluminum mounting plates
