GraphTech RATIO Electric Locking 6-in-Line Classic Machine Heads ~ Left Hand ~ Chrome

Description

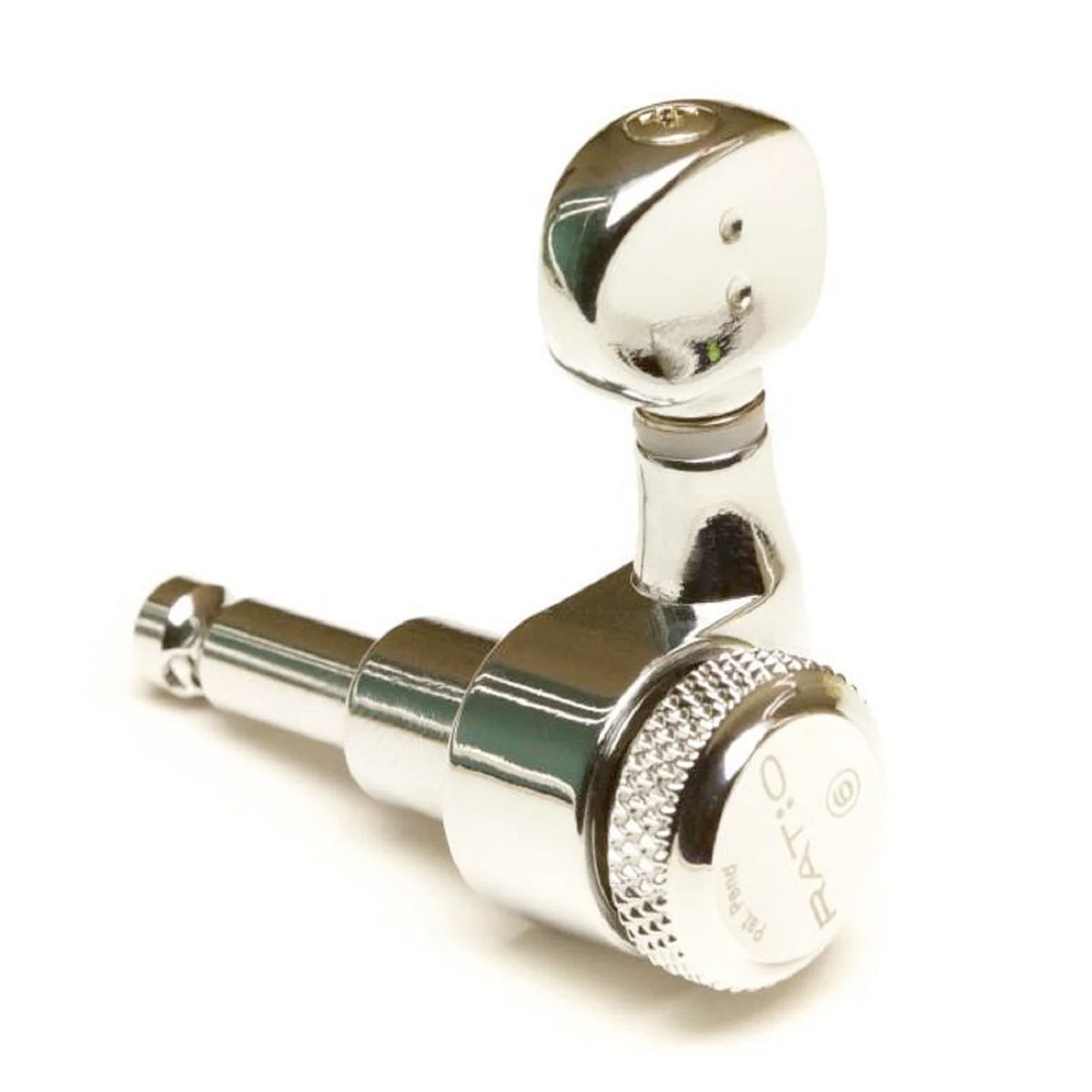

The PRL-8731 are left-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners.

It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.910” (23mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.496lbs (225g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates

GraphTech RATIO Electric Locking 6-in-Line Classic Machine Heads ~ Left Hand ~ Chrome

Product form

The PRL-8731 are left-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners. It has... Read more

SKU: PRL-8731-LC0

Excl. Tax: £157.50 GBP
Incl. Tax: £189.00 GBP

    Description

    The PRL-8731 are left-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners.

    It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

    4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

    Gear ratio: unique for each string position - one turn-one tone
    Peg holes diameter required: 13/32" (10mm)
    String post diameter: 0.236" (6mm)
    String post length to string hole: 0.910” (23mm)
    Weight per single machine head: 0.083lbs (38g)
    Weight per set of six: 0.496lbs (225g)
    String diameter up to 72 gauge
    Includes 6 machine heads, mounting screws and bushings
    Includes complimentary 4 sets of aluminum mounting plates
